Bottom line first: with cold storage temperature loggers, the device itself is worth 30 points out of 100. The other 70 are calibration and the evidence chain. Selection comes down to four hard criteria — accuracy, calibration certificate, data export, and alarming. Calibrate per regulatory and manufacturer requirements; across my projects, the common practice is every 12 months. And when the auditor walks in, you need four things on the table: an equipment register, calibration certificates, continuous temperature/humidity data, and excursion handling records. Miss one and your evidence chain is broken.
Why am I so sure? Because I've seen this exact failure three times. Every time, the client thought "buy a logger, mount it, done." Every time, it blew up on audit day.
Why loggers are always on the audit checklist
A cold storage warehouse makes exactly one core promise: every minute your goods sit in our facility, the temperature stays in the qualified range. Saying it means nothing. Auditors only accept data. The temperature logger is the evidence behind that sentence.
In 2023 I worked on a project for an imported-foods cold storage in eastern China, supplying a supermarket chain. The client's audit team walked in and their very first request wasn't about capacity or racking — it was 12 months of continuous temperature data. The loggers were installed, and they had been recording faithfully. But the data couldn't be exported. The units were bought years ago; the companion software only ran on one ancient PC, which had died the previous year. The new PC couldn't install the drivers. The data was trapped inside the devices — which is the same as not having it. I've seen this pit three times: once the software was lost, once nobody remembered the login, and this time the hardware worked but the data couldn't get out. Audit result: major non-conformance, three months of corrective action.
So remember: a logger's value isn't in recording — it's in being retrievable.
Temperature logger selection: four hard criteria, one scorecard
Loggers on the market range from tens to thousands of dollars. How do you choose? Here's the scorecard I use on projects — four hard criteria, 25 points each:
1. Accuracy (25 pts). For chillers (2–8°C), pick ±0.5°C or better; for freezers (below −18°C), check accuracy in the low-temperature band specifically. Go by the product datasheet — never trust a sales rep's verbal "ours is very accurate."
2. Calibration certificate (25 pts). Can the vendor provide a traceable calibration certificate at delivery? Note the word "traceable." Plenty of cheap units ship with a factory "pass" slip that says "inspected OK" — worthless in front of an auditor. Ask sales directly before buying: does the certificate carry an accredited lab's stamp, is the traceability chain documented? If they can't answer, disqualify it.
3. Data export (25 pts). Can data be exported in standard formats (CSV/PDF), and are exports tamper-evident (e.g., timestamp-signed PDFs)? This is the lesson written in blood from my stories above: prefer units with standard USB export or automatic cloud sync. Avoid anything that requires proprietary software where a PC swap leaves you stranded. I've seen this pit three times, and every single time it was the export step that failed.
4. Alarming (25 pts). Can it alarm in real time on excursion (SMS/email/siren)? A logger that only records but never shouts is a historian, not a guard. Last year a pharma client's cold room lost its refrigeration unit overnight; temperature climbed from 5°C to 11°C, and the logger faithfully recorded the whole thing — but nobody knew until the morning shift handover. The entire lot was quarantined, and nearly a third was ultimately scrapped. With real-time alarming, the loss would have been an order of magnitude smaller.
Score it up: below 60, don't bother; above 75, then talk price.
Calibration: what actually counts
Selection is just the start. Calibration is what auditors really scrutinize. Step by step:
Step 1: Build an equipment register. Every logger (probes included) gets an ID: install location, model, serial number, commissioning date. This register is the start of the evidence chain — without it, everything downstream is an orphan.
Step 2: Set the calibration interval. Follow regulatory requirements and the manufacturer's recommendation. The common practice across my projects is calibration every 12 months; pharma and high-risk food clients sometimes require 6. Note: "common practice" is not "your requirement" — your client contracts and applicable regulations decide, and it goes into your SOP in black and white.
Step 3: Use an accredited lab. A national metrology institute or an accredited third party both work. Checking it yourself against an ice bath is not calibration — an auditor who sees that writes a non-conformance on the spot.
Step 4: File the certificates. Scan every calibration certificate into the archive; keep paper originals in the quality file cabinet. The certificate must map to the equipment ID — register number and certificate number not matching means it was never calibrated, as far as the auditor is concerned. This detail has sunk plenty of sites; at least two projects I've touched failed on exactly this.
Step 5: Expiry alerts. Put an expiry reminder for every unit in your WMS or quality module, firing 30 days ahead. Humans forget; systems don't. If logger data can feed the system, so can calibration due dates.
Getting the data into the system: don't let loggers be islands
Logger data sitting only in the vendor's software is an island. My recommendation:
- Auto-export once a day (or per shift) to a fixed directory, filenames carrying the date, and nobody edits them by hand — audit red line: any hand-edited data is treated as invalid, period.
- Create a "temperature excursion" ticket type in your WMS or quality module: when an alarm fires, a ticket opens (auto or manual) capturing the response — when it was found, where the goods were moved, how QA dispositioned it, how it was closed. That ticket is the fourth piece of the evidence chain: the excursion handling record.
- Publish a monthly temperature compliance report: one-paragraph summary (how many excursions, how handled) plus the data appendix. Clients want it, auditors want it, and you need it for your own review.
Common failure points: the go-live-eve checklist
As is my habit, here's a checklist — tick each one:

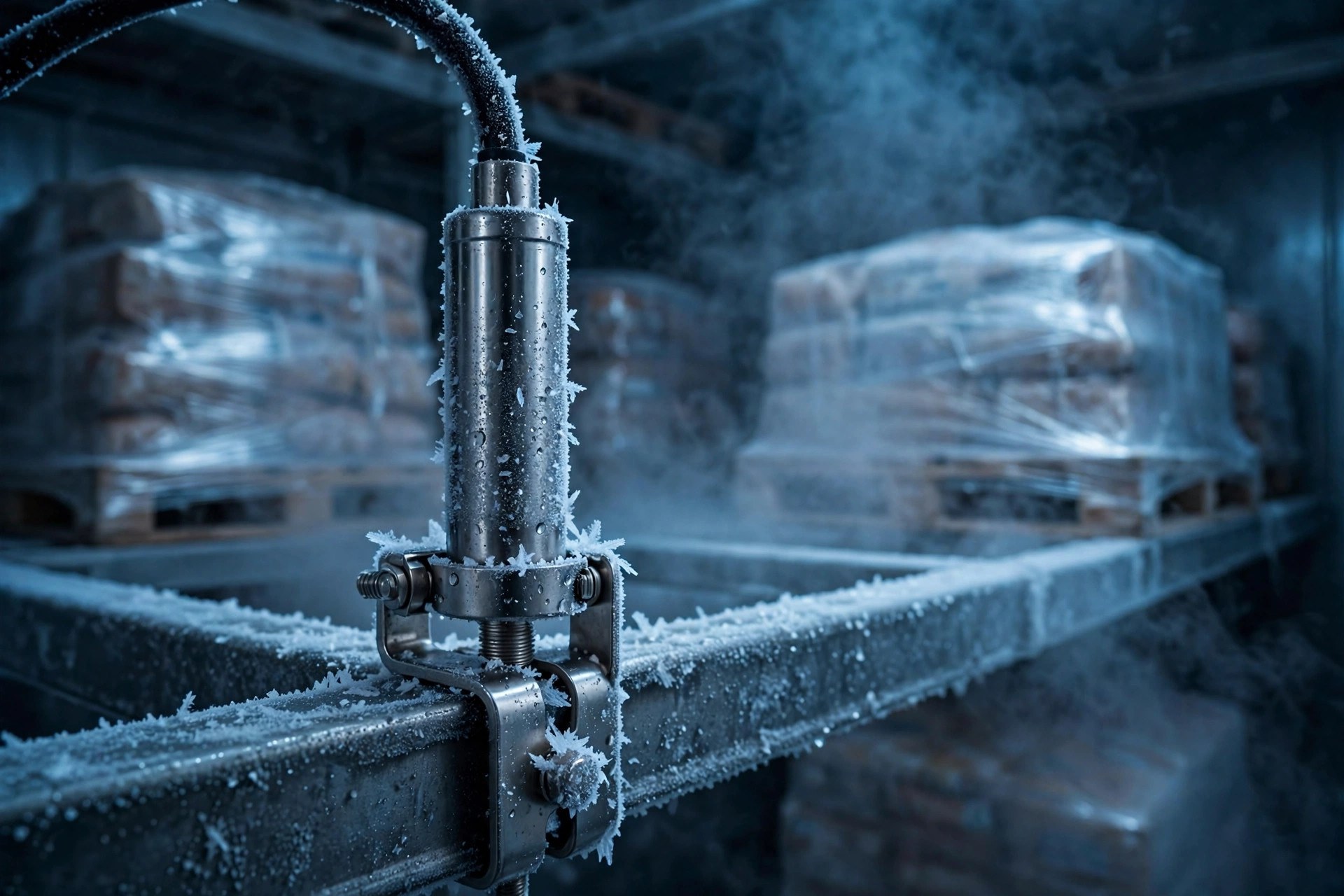

- Probe placement: not by the cold room door, not in direct fan airflow, not in dead corners of the pallet stacks. Door areas swing with every opening — the data lies, and auditors spot bad probe placement instantly.
- Data continuity: any gaps in the last 12 months? Did you backfill the days when batteries were swapped or units relocated?
- Certificate validity: every unit currently in its calibration window? One day expired is expired.
- Export drill: pick a random unit on the spot and export the last three months of data within 10 minutes. Can't do it? Go practice.
- Excursion records: any excursions in the last year? Every one with a handling record? "Zero excursions" isn't suspicious by itself — but "excursions with no records" always is.
One last repeat of the conclusion: the auditor doesn't care how expensive your loggers are. He cares whether the data ever broke off, whether calibration is current, and what you did when temperature went out of range. Nail those three, and you'll sleep fine on audit day.
By Lin Xiao, WMS Implementation Consultant
